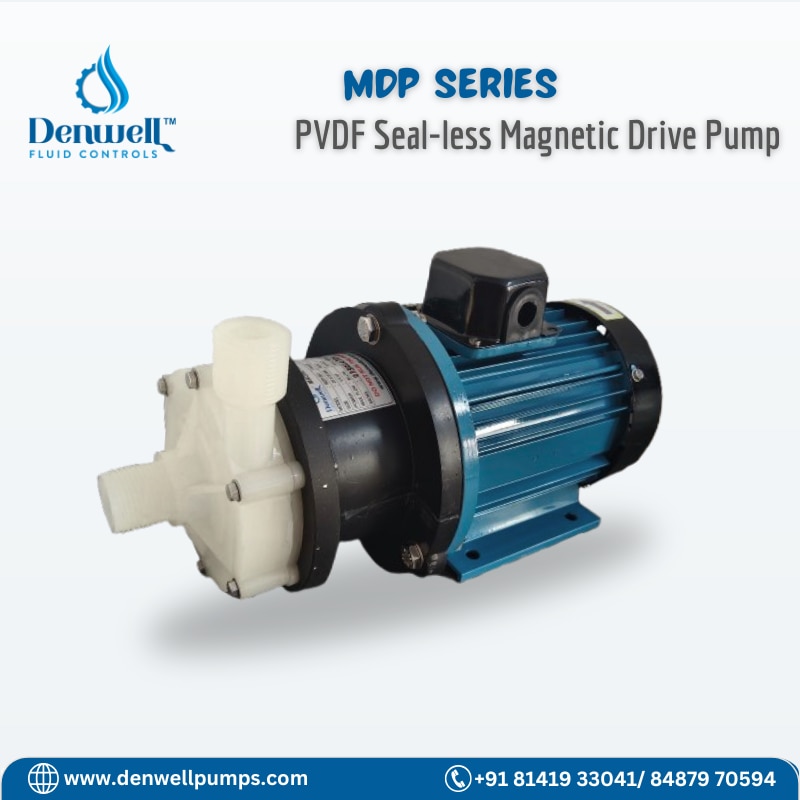

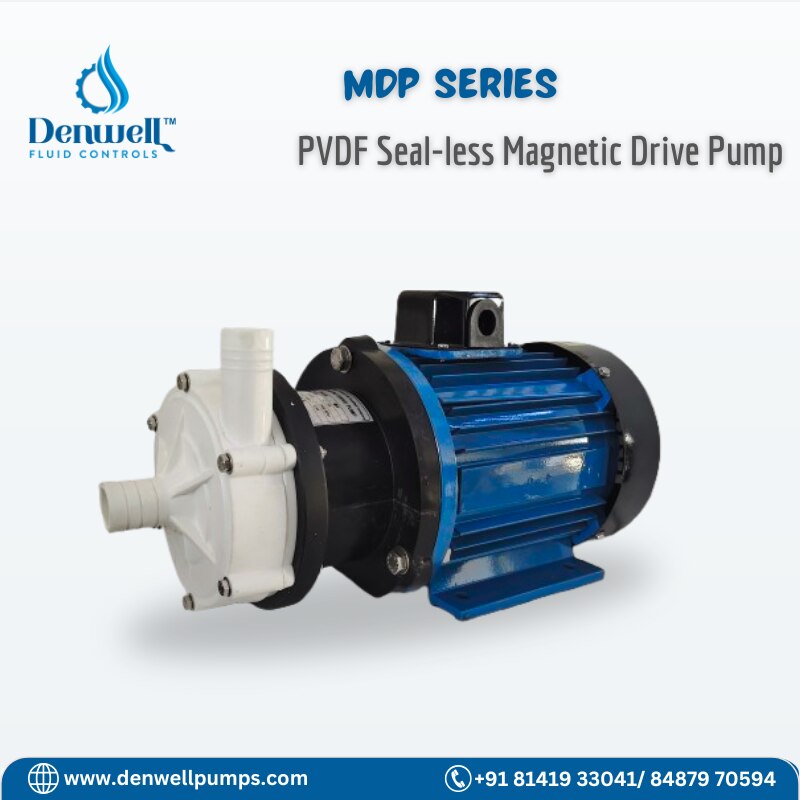

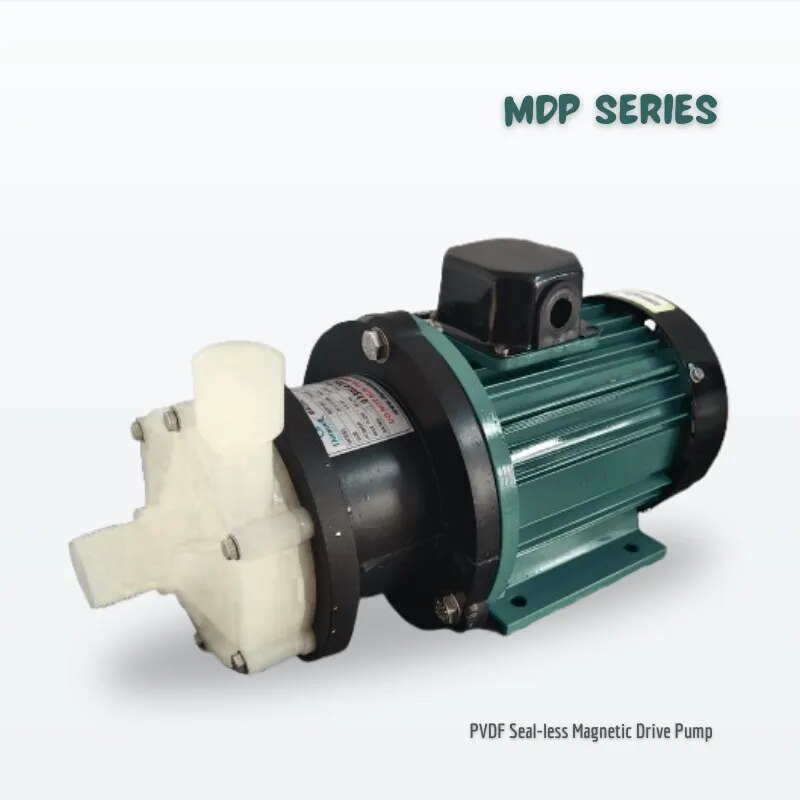

PVDF Magnetic Drive Pump
Description
PVDF Magnetic Drive Pump – Leak Proof Chemical Pump | Denwell Fluid Controls
Denwell Fluid Controls manufactures PVDF Magnetic Drive Pumps designed for safe, reliable, and 100% leak-proof transfer of highly corrosive and aggressive chemicals. These pumps are developed for applications where PP material is not suitable and higher chemical resistance and purity are required.
The PVDF Magnetic Drive Pump operates on a seal-less magnetic coupling principle, eliminating mechanical seals and preventing any leakage of hazardous liquids. The pump is manufactured using high-grade PVDF material, offering excellent resistance to strong acids, oxidizing chemicals, solvents, and aggressive process liquids. This design ensures maximum safety, low maintenance, and long service life.
Technical details
– Flow range: 1 LPM to 1000 LPM
– Head range: 1 meter to 50 meters
– Pump type: Magnetic drive centrifugal pump
– Design: Seal-less, leak proof
– Impeller type: Closed / semi-open (as per model)
– Material of construction: PVDF
– Temperature handling: Up to 90°C
– Motor power: 0.12 kW to 7.5 kW
– Power supply: AC / DC
– Phase: Single phase / Three phase
– Frequency: 50 Hz / 60 Hz
– Speed: 1450 / 2900 RPM
– Mounting: Base mounted / monoblock (as per model)
PVDF Magnetic Drive Pumps from Denwell Fluid Controls are widely used for handling highly corrosive chemicals such as concentrated acids, alkalis, solvents, oxidizing chemicals, and high-purity process liquids. Typical applications include chemical processing plants, pharmaceutical and bulk drug industries, dyes and pigments, surface treatment plants, semiconductor and electronics industries, ETP systems, scrubbers, and chemical transfer lines.
These pumps offer zero leakage, low noise operation, high efficiency, and enhanced operator safety, making them an ideal choice for critical chemical handling applications. Each pump is manufactured and tested under strict quality control standards to ensure reliable and continuous performance.
With proven expertise in seal-less magnetic drive pump technology, Denwell Fluid Controls is a trusted PVDF Magnetic Drive Pump manufacturer in India, delivering safe, efficient, and long-lasting chemical pumping solutions.
