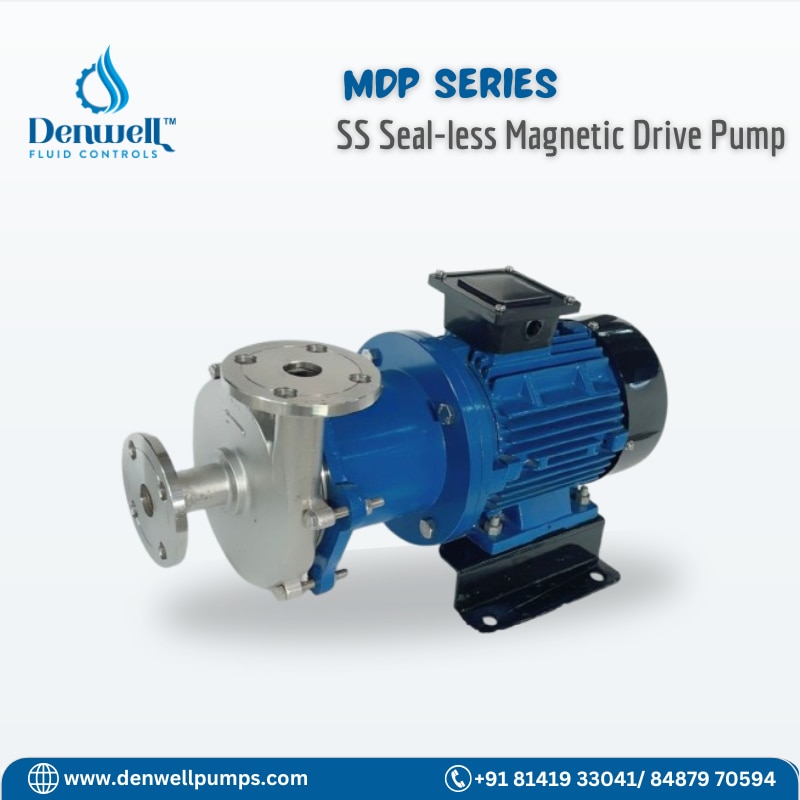

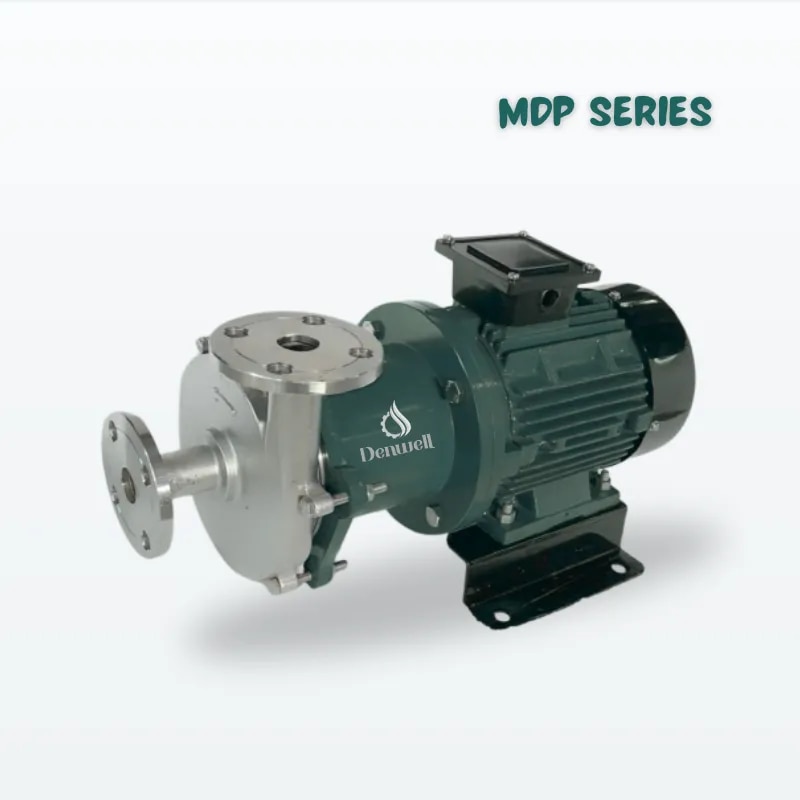

SS Magnetic Drive Pump

Horizontal End Suction Centrifugal Pump – Denwell Fluid Controls Denwell Fluid Controls is a leading manufacturer and supplier of Horizontal End Suction Centrifugal Pumps in India, designed for efficient and reliable handling of water and industrial liquids. These pumps are widely used where consistent flow, stable pressure, and continuous operation are required. The Horizontal End Suction Centrifugal Pump features a single-stage, end suction design that ensures compact installation, easy alignment with electric motors, and simplified maintenance. The pump is engineered with a precision-balanced impeller and robust casing to deliver high hydraulic efficiency, smooth flow, and low vibration during operation. Technical Specifications: - Flow Range: Up to 1500 m³/hr - Head Range: Up to 200 meters - Operating Pressure: Up to 20 bar (higher on request) - Temperature Handling: Up to 150°C - Speed: 960 / 1450 / 2900 / 3500 RPM - Motor Power: 0.5 HP to 670 HP - Pump Type: Single Stage, End Suction, Horizontal - Sealing Options: Mechanical Seal / Gland Packing - Material of Construction: Cast Iron, Ductile Iron, SS 304, SS 316 These centrifugal pumps are suitable for applications such as water supply systems, HVAC circulation, cooling water systems, fire fighting installations, boiler feed, chemical processing, power plants, sugar industries, textile industries, and general industrial fluid transfer. Denwell Fluid Controls Horizontal End Suction Centrifugal Pumps are manufactured as per international quality standards and can be customized based on flow, head, liquid characteristics, and operating conditions. With reliable performance, long service life, and strong after-sales support, Denwell Fluid Controls has become a trusted centrifugal pump manufacturer in India.

Centrifugal Chemical Process Pump – DCP Series | Denwell Fluid Controls Denwell Fluid Controls offers the DCP Series Centrifugal Chemical Process Pumps, specially designed for efficient and reliable handling of corrosive chemicals, process liquids, and chemical slurries in continuous industrial operations. These pumps are engineered to deliver consistent performance, high efficiency, and long service life in demanding process environments. The DCP Series is a horizontal, single-stage centrifugal chemical process pump equipped with a semi-open impeller design, making it suitable for slurry transfer and liquids containing suspended solids. The semi-open impeller allows smooth passage of soft solids and reduces clogging, making the pump ideal for chemical processes where clean liquids are not always guaranteed. Technical Specifications: Flow Range: Up to 300 m³/hr Head Range: Up to 80 meters Operating Pressure: Up to 10 bar Temperature Handling: Up to 150°C Speed: 960/ 1450 / 2900/ 3500 RPM Motor Power: 1 HP to 50 HP Pump Type: Single Stage, Horizontal Centrifugal Impeller Type: Semi-Open Impeller (Suitable for Slurry Transfer) Sealing Arrangement: Mechanical Seal / Gland Packing Material of Construction: SS 316, SS 304, Alloy Steel (as per chemical compatibility) The DCP Series Chemical Process Pump is suitable for handling acids, alkalis, solvents, chemical solutions, process liquids, and soft chemical slurries. Typical applications include chemical processing plants, pharmaceuticals, dyes & pigments, surface treatment plants, refineries, fertilizer units, effluent treatment plants, and wastewater handling systems. Denwell Fluid Controls DCP Series Chemical Process Pumps are manufactured as per international quality standards and can be customized based on chemical type, slurry concentration, particle size (soft solids), flow rate, head, and operating temperature. With robust construction, slurry-handling capability, and reliable performance, Denwell Fluid Controls is a trusted chemical process pump manufacturer in India.

PP / PVDF Non-Metallic Centrifugal Pump – PPC Series | Denwell Fluid Controls Denwell Fluid Controls manufactures the PPC Series PP and PVDF Non-Metallic Centrifugal Pumps designed for safe, efficient, and corrosion-resistant handling of aggressive chemicals and process liquids. These pumps are ideal for applications where metallic pumps are unsuitable due to corrosion, chemical attack, or contamination risks. The PPC Series Non-Metallic Centrifugal Pump is designed with robust non-metallic construction to provide excellent chemical resistance, reliable performance, and long service life. The pump delivers smooth hydraulic operation, stable flow, and low maintenance for continuous industrial duty. Depending on chemical compatibility, the pump is available in Polypropylene (PP) or PVDF material. Technical details – Series: PPC – Pump type: Non-metallic centrifugal pump – Material of construction: PP / PVDF – Flow range: 1 LPM to 1000 LPM – Head range: 1 meter to 50 meters – Impeller type: Closed / semi-open (as per application) – Seal type: Mechanical seal / Gland packing – Temperature handling: Up to 90°C (depending on material) – Motor power: 0.12 kW to 7.5 kW – Power supply: AC only – Phase: Single phase / Three phase – Frequency: 50 Hz / 60 Hz – Speed: 1450 / 2900 RPM – Mounting: Base mounted / Monoblock (as per model) PPC Series PP / PVDF Non-Metallic Centrifugal Pumps from Denwell Fluid Controls are widely used for transferring acids, alkalis, chemicals, solvents, and corrosive process liquids. Typical applications include chemical processing plants, pharmaceutical industries, dyes and pigments, surface treatment plants, electroplating units, ETP and STP systems, scrubbers, and chemical circulation duties. These pumps offer corrosion-free operation, high efficiency, low noise, and reduced maintenance costs, making them a reliable alternative to conventional metallic centrifugal pumps. Each pump is manufactured and tested under strict quality control to ensure consistent performance and operational safety. With strong expertise in non-metallic pump technology, Denwell Fluid Controls is a trusted PPC Series PP / PVDF Non-Metallic Centrifugal Pump manufacturer in India, delivering durable, safe, and cost-effective pumping solutions.
