Horizontal End Suction Centrifugal Pump – Denwell Fluid Controls Denwell Fluid Controls is a leading manufacturer and supplier of Horizontal End Suction Centrifugal Pumps in India, designed for efficient and reliable handling of water and industrial liquids. These pumps are widely used where consistent flow, stable pressure, and continuous operation are required. The Horizontal End Suction Centrifugal Pump features a single-stage, end suction design that ensures compact installation, easy alignment with electric motors, and simplified maintenance. The pump is engineered with a precision-balanced impeller and robust casing to deliver high hydraulic efficiency, smooth flow, and low vibration during operation. Technical Specifications: - Flow Range: Up to 1500 m³/hr - Head Range: Up to 200 meters - Operating Pressure: Up to 20 bar (higher on request) - Temperature Handling: Up to 150°C - Speed: 960 / 1450 / 2900 / 3500 RPM - Motor Power: 0.5 HP to 670 HP - Pump Type: Single Stage, End Suction, Horizontal - Sealing Options: Mechanical Seal / Gland Packing - Material of Construction: Cast Iron, Ductile Iron, SS 304, SS 316 These centrifugal pumps are suitable for applications such as water supply systems, HVAC circulation, cooling water systems, fire fighting installations, boiler feed, chemical processing, power plants, sugar industries, textile industries, and general industrial fluid transfer. Denwell Fluid Controls Horizontal End Suction Centrifugal Pumps are manufactured as per international quality standards and can be customized based on flow, head, liquid characteristics, and operating conditions. With reliable performance, long service life, and strong after-sales support, Denwell Fluid Controls has become a trusted centrifugal pump manufacturer in India.

Centrifugal Chemical Process Pump – DCP Series | Denwell Fluid Controls Denwell Fluid Controls offers the DCP Series Centrifugal Chemical Process Pumps, specially designed for efficient and reliable handling of corrosive chemicals, process liquids, and chemical slurries in continuous industrial operations. These pumps are engineered to deliver consistent performance, high efficiency, and long service life in demanding process environments. The DCP Series is a horizontal, single-stage centrifugal chemical process pump equipped with a semi-open impeller design, making it suitable for slurry transfer and liquids containing suspended solids. The semi-open impeller allows smooth passage of soft solids and reduces clogging, making the pump ideal for chemical processes where clean liquids are not always guaranteed. Technical Specifications: Flow Range: Up to 300 m³/hr Head Range: Up to 80 meters Operating Pressure: Up to 10 bar Temperature Handling: Up to 150°C Speed: 960/ 1450 / 2900/ 3500 RPM Motor Power: 1 HP to 50 HP Pump Type: Single Stage, Horizontal Centrifugal Impeller Type: Semi-Open Impeller (Suitable for Slurry Transfer) Sealing Arrangement: Mechanical Seal / Gland Packing Material of Construction: SS 316, SS 304, Alloy Steel (as per chemical compatibility) The DCP Series Chemical Process Pump is suitable for handling acids, alkalis, solvents, chemical solutions, process liquids, and soft chemical slurries. Typical applications include chemical processing plants, pharmaceuticals, dyes & pigments, surface treatment plants, refineries, fertilizer units, effluent treatment plants, and wastewater handling systems. Denwell Fluid Controls DCP Series Chemical Process Pumps are manufactured as per international quality standards and can be customized based on chemical type, slurry concentration, particle size (soft solids), flow rate, head, and operating temperature. With robust construction, slurry-handling capability, and reliable performance, Denwell Fluid Controls is a trusted chemical process pump manufacturer in India.

PP / PVDF Non-Metallic Centrifugal Pump – PPC Series | Denwell Fluid Controls Denwell Fluid Controls manufactures the PPC Series PP and PVDF Non-Metallic Centrifugal Pumps designed for safe, efficient, and corrosion-resistant handling of aggressive chemicals and process liquids. These pumps are ideal for applications where metallic pumps are unsuitable due to corrosion, chemical attack, or contamination risks. The PPC Series Non-Metallic Centrifugal Pump is designed with robust non-metallic construction to provide excellent chemical resistance, reliable performance, and long service life. The pump delivers smooth hydraulic operation, stable flow, and low maintenance for continuous industrial duty. Depending on chemical compatibility, the pump is available in Polypropylene (PP) or PVDF material. Technical details – Series: PPC – Pump type: Non-metallic centrifugal pump – Material of construction: PP / PVDF – Flow range: 1 LPM to 1000 LPM – Head range: 1 meter to 50 meters – Impeller type: Closed / semi-open (as per application) – Seal type: Mechanical seal / Gland packing – Temperature handling: Up to 90°C (depending on material) – Motor power: 0.12 kW to 7.5 kW – Power supply: AC only – Phase: Single phase / Three phase – Frequency: 50 Hz / 60 Hz – Speed: 1450 / 2900 RPM – Mounting: Base mounted / Monoblock (as per model) PPC Series PP / PVDF Non-Metallic Centrifugal Pumps from Denwell Fluid Controls are widely used for transferring acids, alkalis, chemicals, solvents, and corrosive process liquids. Typical applications include chemical processing plants, pharmaceutical industries, dyes and pigments, surface treatment plants, electroplating units, ETP and STP systems, scrubbers, and chemical circulation duties. These pumps offer corrosion-free operation, high efficiency, low noise, and reduced maintenance costs, making them a reliable alternative to conventional metallic centrifugal pumps. Each pump is manufactured and tested under strict quality control to ensure consistent performance and operational safety. With strong expertise in non-metallic pump technology, Denwell Fluid Controls is a trusted PPC Series PP / PVDF Non-Metallic Centrifugal Pump manufacturer in India, delivering durable, safe, and cost-effective pumping solutions.

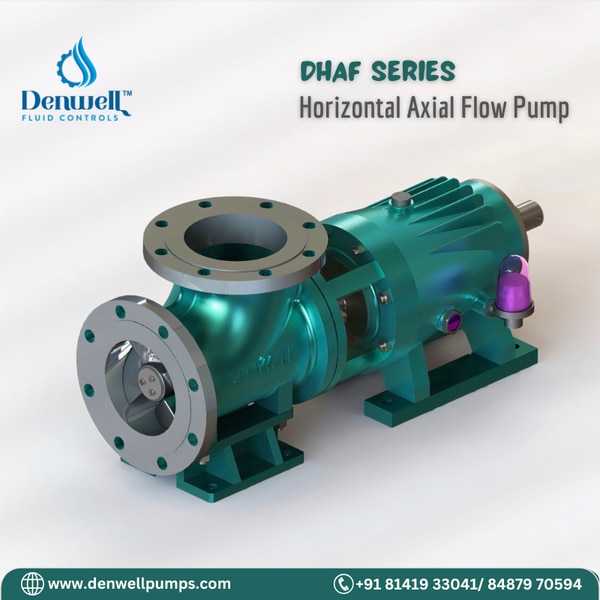

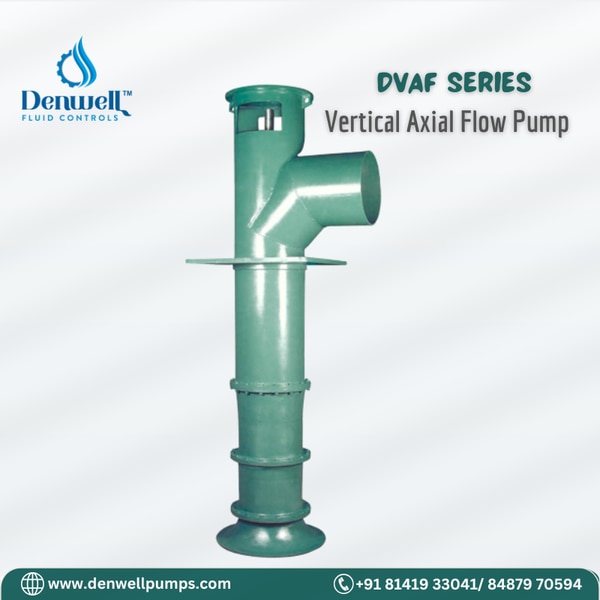

Denwell Fluid Controls introduces its advanced *Axial Flow Pump*, specially engineered for *very high flow and low head applications* in critical industrial processes. Designed with precision engineering and robust construction, this pump is ideal for continuous-duty operations where large volumes of liquid need to be handled efficiently. Denwell Fluid Controls has achieved a major engineering milestone by developing *India’s first API standard Axial Flow Pump*, designed and manufactured to meet stringent *API requirements* for reliability, safety, and long operational life. This makes the pump highly suitable for demanding applications in process industries and energy sectors. The Axial Flow Pump operates by moving fluid parallel to the pump shaft using a propeller-type impeller, allowing extremely high discharge with minimal energy loss. The optimized hydraulic design ensures smooth flow, low vibration, and high efficiency even under continuous operating conditions. ### **Technical Range:** * **Flow Range:** Up to **25,000 m³/hr** * **Head Range:** Up to **10 meters** * **Pump Type:** Axial Flow Pump * **Design Standard:** **API Standard (India’s First by Denwell Fluid Controls)** * **Duty:** Continuous * **Mounting:** Vertical / Horizontal * **Material of Construction:** Cast Iron, SS, Alloy Steel (as per application) Denwell Axial Flow Pumps are extensively used in **Multiple Effect Evaporators (MEE)** and **Biogas plants**, where handling of large volumes of process liquid, digestate, and circulation fluid is critical. These pumps are also widely used in **power plants, cooling water circulation, condenser systems, irrigation, flood control, desalination plants, and large water intake & discharge systems**. Each Axial Flow Pump from Denwell Fluid Controls is engineered, manufactured, and tested under strict quality control procedures to ensure consistent performance and long service life. With API-compliant design, proven field performance, and strong after-sales support, Denwell Fluid Controls stands as a leading *Axial Flow Pump manufacturer in India*.

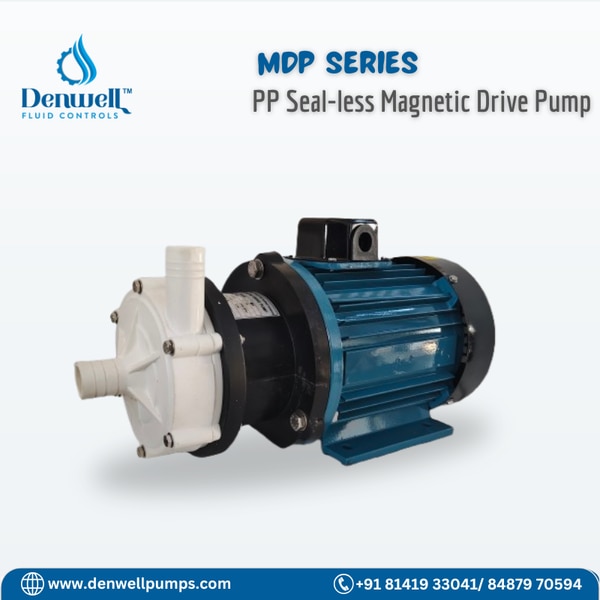

PP Magnetic Drive Pump – Leak Proof Chemical Pump | Denwell Fluid Controls Denwell Fluid Controls manufactures PP Magnetic Drive Pumps designed for 100% leak-proof and seal-less transfer of corrosive and hazardous chemicals. These pumps are ideal for applications where safety, reliability, and zero leakage are critical. The PP Magnetic Drive Pump works on a seal-less magnetic coupling principle, eliminating the need for mechanical seals and preventing leakage of chemicals. The pump is manufactured using high-grade Polypropylene (PP), which offers excellent resistance to acids, alkalis, and aggressive process liquids. This design ensures low maintenance, safe operation, and long service life. Technical details – Flow range: 1 LPM to 1000 LPM – Head range: 1 meter to 50 meters – Pump type: Magnetic drive centrifugal pump – Design: Seal-less, leak proof – Material of construction: Polypropylene (PP) – Temperature handling: Up to 80°C – Motor power: 0.12 kW to 7.5 kW – Speed: 1450 / 2900 RPM – Mounting: Base mounted / monoblock (as per model) PP Magnetic Drive Pumps from Denwell Fluid Controls are widely used for handling acids, alkalis, solvents, chemicals, and aggressive process liquids. Typical applications include chemical processing plants, pharmaceutical industries, dyes and pigments, surface treatment plants, ETP and STP systems, scrubbers, plating plants, and general chemical transfer operations. These pumps provide high efficiency, low noise, zero emission, and enhanced operator safety, making them an ideal replacement for conventional sealed chemical pumps. Each pump is manufactured and tested under strict quality control to ensure reliable and continuous performance. With strong expertise in seal-less pump technology, Denwell Fluid Controls is a trusted PP Magnetic Drive Pump manufacturer in India, delivering safe, efficient, and cost-effective chemical pumping solutions.

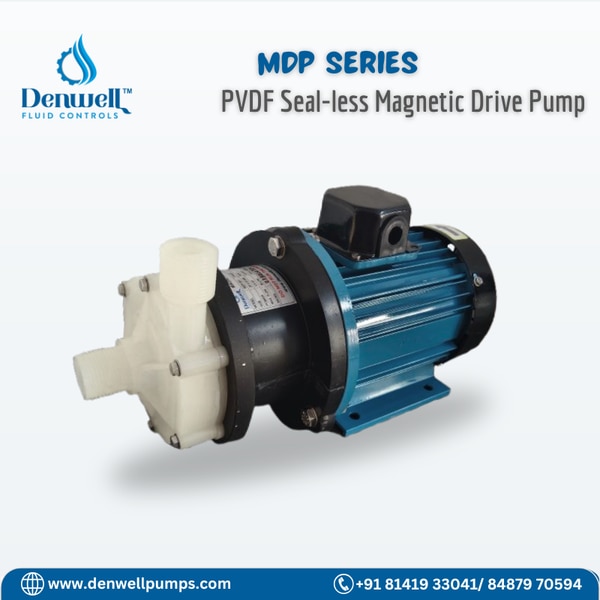

PVDF Magnetic Drive Pump – Leak Proof Chemical Pump | Denwell Fluid Controls Denwell Fluid Controls manufactures PVDF Magnetic Drive Pumps designed for safe, reliable, and 100% leak-proof transfer of highly corrosive and aggressive chemicals. These pumps are developed for applications where PP material is not suitable and higher chemical resistance and purity are required. The PVDF Magnetic Drive Pump operates on a seal-less magnetic coupling principle, eliminating mechanical seals and preventing any leakage of hazardous liquids. The pump is manufactured using high-grade PVDF material, offering excellent resistance to strong acids, oxidizing chemicals, solvents, and aggressive process liquids. This design ensures maximum safety, low maintenance, and long service life. Technical details – Flow range: 1 LPM to 1000 LPM – Head range: 1 meter to 50 meters – Pump type: Magnetic drive centrifugal pump – Design: Seal-less, leak proof – Impeller type: Closed / semi-open (as per model) – Material of construction: PVDF – Temperature handling: Up to 90°C – Motor power: 0.12 kW to 7.5 kW – Power supply: AC / DC – Phase: Single phase / Three phase – Frequency: 50 Hz / 60 Hz – Speed: 1450 / 2900 RPM – Mounting: Base mounted / monoblock (as per model) PVDF Magnetic Drive Pumps from Denwell Fluid Controls are widely used for handling highly corrosive chemicals such as concentrated acids, alkalis, solvents, oxidizing chemicals, and high-purity process liquids. Typical applications include chemical processing plants, pharmaceutical and bulk drug industries, dyes and pigments, surface treatment plants, semiconductor and electronics industries, ETP systems, scrubbers, and chemical transfer lines. These pumps offer zero leakage, low noise operation, high efficiency, and enhanced operator safety, making them an ideal choice for critical chemical handling applications. Each pump is manufactured and tested under strict quality control standards to ensure reliable and continuous performance. With proven expertise in seal-less magnetic drive pump technology, Denwell Fluid Controls is a trusted PVDF Magnetic Drive Pump manufacturer in India, delivering safe, efficient, and long-lasting chemical pumping solutions.

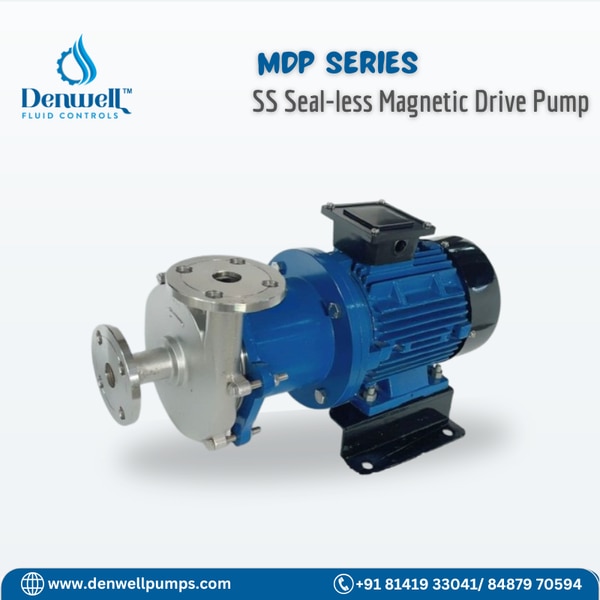

SS 316 Magnetic Drive Pump – Leak Proof Metallic Chemical Pump | Denwell Fluid Controls Denwell Fluid Controls manufactures SS 316 Magnetic Drive Pumps designed for safe, reliable, and 100% leak-proof transfer of corrosive, hazardous, and high-temperature chemicals. These pumps are ideal for critical applications where metallic strength, chemical resistance, and zero leakage are essential. The SS 316 Magnetic Drive Pump operates on a seal-less magnetic coupling principle, completely eliminating mechanical seals and preventing any leakage of hazardous liquids. The pump is manufactured using high-quality Stainless Steel 316, offering excellent resistance to corrosion, high temperatures, and aggressive chemicals. This design ensures maximum safety, minimal maintenance, and long service life in demanding industrial environments. Technical details – Pump type: Magnetic drive centrifugal pump – Design: Seal-less, leak proof – Material of construction: Stainless Steel 316 – Flow range: Up to 500 M3/hr – Head range: Up to 100 meters – Impeller type: Closed/Semi Open Impeller – Temperature handling: Up to 200°C – Motor power: start with 0.5 HP Min. – Power supply: AC only – Phase: Single phase / Three phase – Frequency: 50 Hz / 60 Hz – Speed: 1450 / 2900 / 3500 RPM – Mounting: Base mounted / Monoblock (as per model) SS 316 Magnetic Drive Pumps from Denwell Fluid Controls are widely used for handling corrosive and hazardous chemicals, solvents, acids, alkalis, hot process liquids, and high-purity fluids. Typical applications include chemical processing plants, pharmaceutical and bulk drug industries, petrochemical units, refineries, dyes and pigments, specialty chemical plants, heat transfer applications, and critical chemical transfer duties. These pumps provide zero leakage, high mechanical strength, low noise operation, and enhanced operator safety, making them an ideal replacement for conventional sealed metallic pumps. Each pump is manufactured and tested under strict quality control standards to ensure reliable and continuous performance. With strong expertise in metallic seal-less pump technology, Denwell Fluid Controls is a trusted SS 316 Magnetic Drive Pump manufacturer in India, delivering safe, efficient, and long-lasting pumping solutions for critical industrial applications.

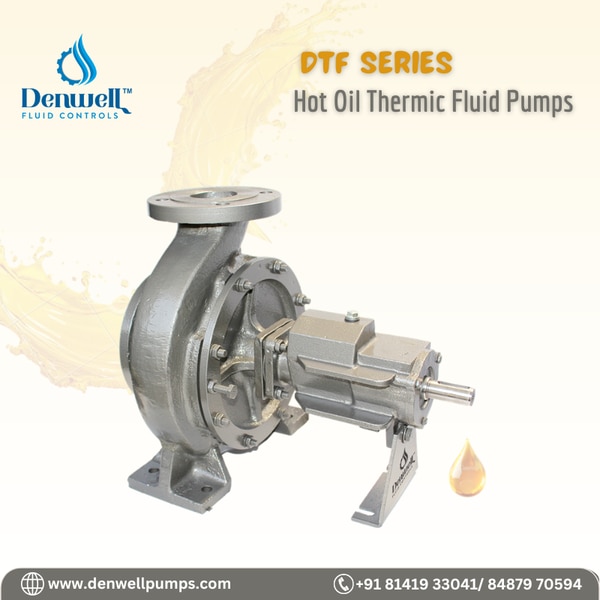

Hot Oil / Thermic Fluid Pump – DTF Series (Air Cooled) | Denwell Fluid Controls Denwell Fluid Controls manufactures the DTF Series Hot Oil / Thermic Fluid Pumps designed for safe and efficient circulation of thermic fluid and hot oil in closed loop heating systems. These pumps are developed for continuous high-temperature applications where reliability, safety, and long service life are essential. The DTF Series Thermic Fluid Pump is a horizontal centrifugal pump with air cooled design, eliminating the requirement of any external cooling arrangement. The pump is fitted with a high-quality mechanical seal of Eagle Burgmann make, ensuring leakage-free and trouble-free operation even at elevated operating temperatures. The robust design allows stable performance under continuous duty conditions. Technical details – Series: DTF – Pump type: Hot oil / Thermic fluid centrifugal pump – Design: Horizontal, air cooled – Flow range: Up to 180 m³/hr – Head range: Up to 80 meters – Pump size: 32 mm to 80 mm – Temperature handling: Up to 350°C – Seal type: Mechanical seal – Eagle Burgmann make – Material of construction: Cast Iron (CI) / WCB / Stainless Steel – Bearing arrangement: Heavy duty, suitable for high temperature service – Phase: Single phase / Three phase – Frequency: 50 Hz / 60 Hz – Speed: 1450 / 2900 RPM – Mounting: Base mounted DTF Series Hot Oil / Thermic Fluid Pumps from Denwell Fluid Controls are widely used in industries such as chemical plants, textile industries, oil and gas, pharmaceuticals, asphalt plants, polymer and resin manufacturing, food processing units, plywood and laminate industries, rubber industries, and thermic fluid heating systems. These pumps are suitable for circulation of thermic fluid, hot oil, heat transfer oil, and similar high-temperature liquids. The air cooled construction minimizes maintenance and improves operational safety. Each DTF Series pump is manufactured and tested under strict quality control to ensure consistent performance and long service life. With strong engineering expertise and proven field performance, Denwell Fluid Controls is a trusted Hot Oil / Thermic Fluid Pump manufacturer in India, delivering efficient, durable, and safe pumping solutions for high-temperature industrial applications.
